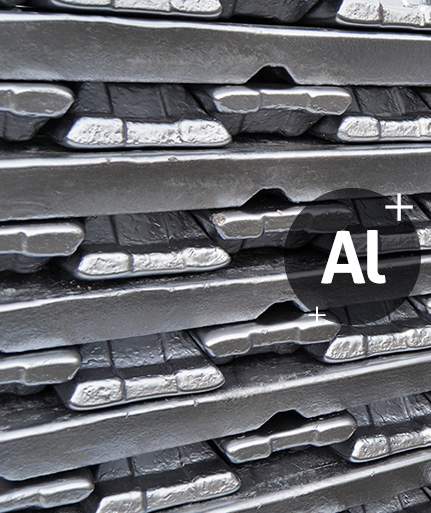

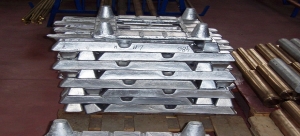

We sell aluminum alloys in the form of standard ingots and tested and certified with a modern quantometer.

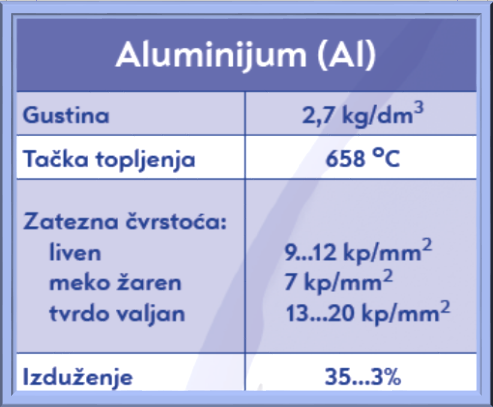

aluminijumskeleguretab aluminijum

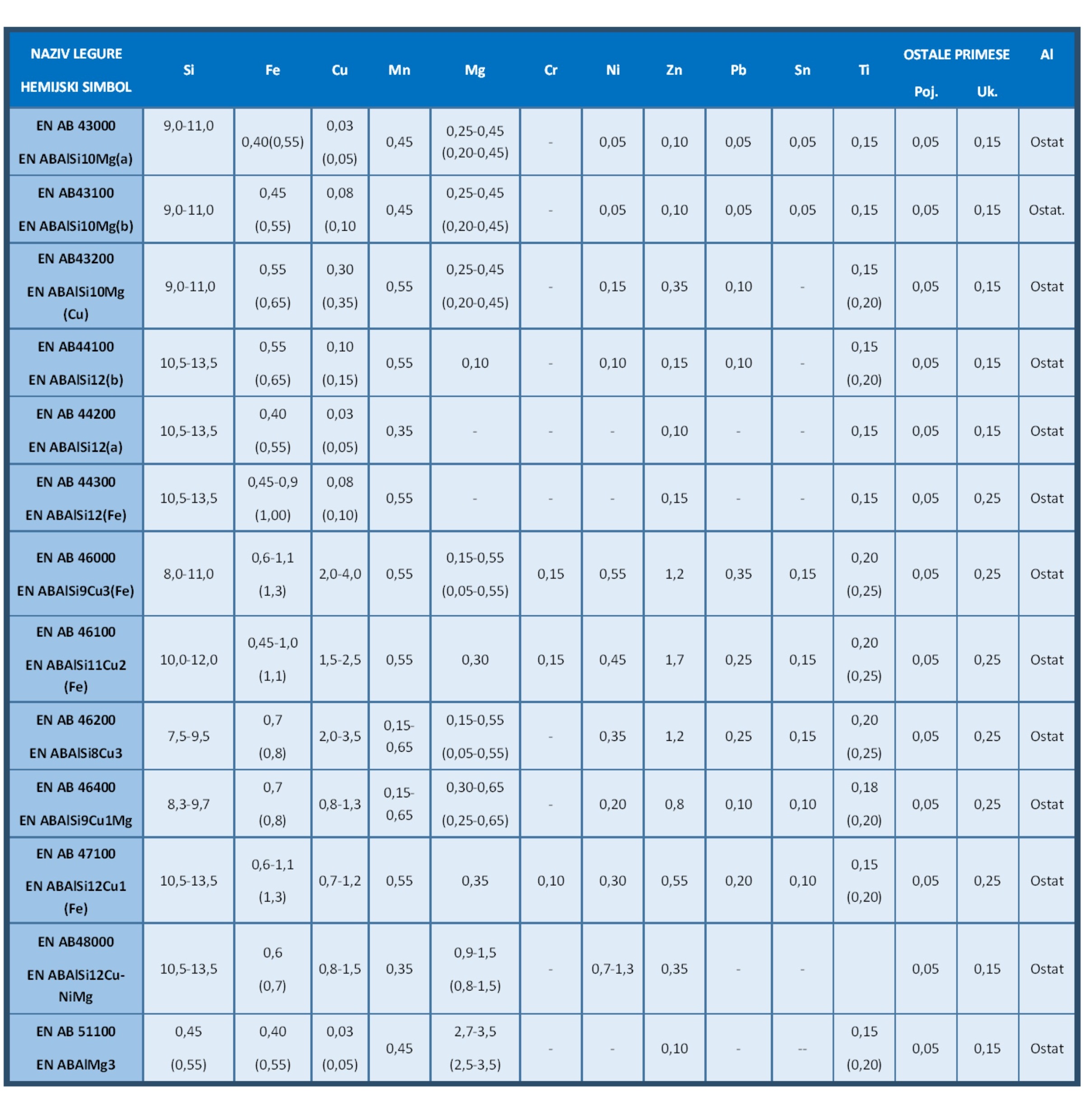

 legure aluminijuma silumin





Objavljeno u Aluminum

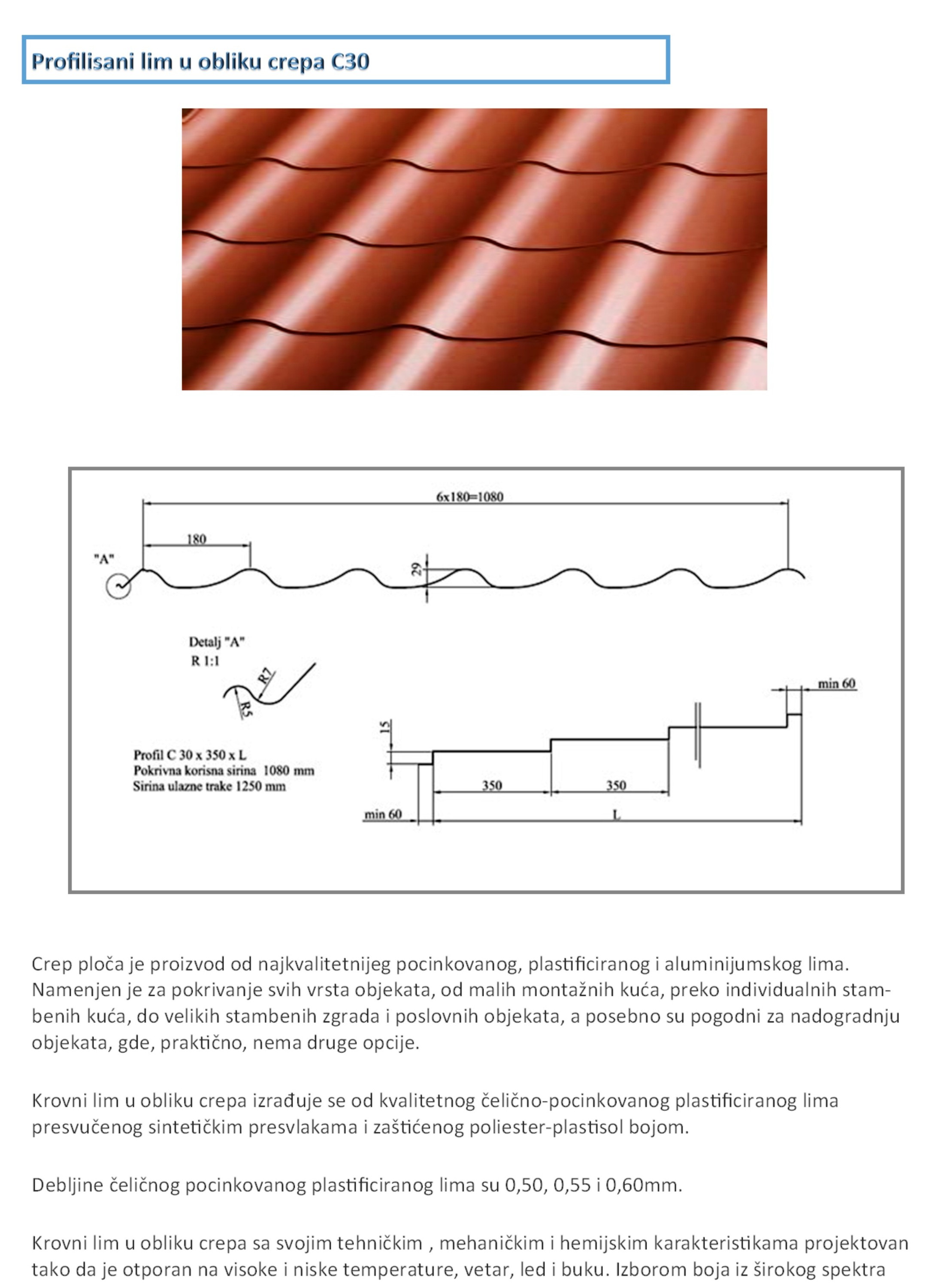

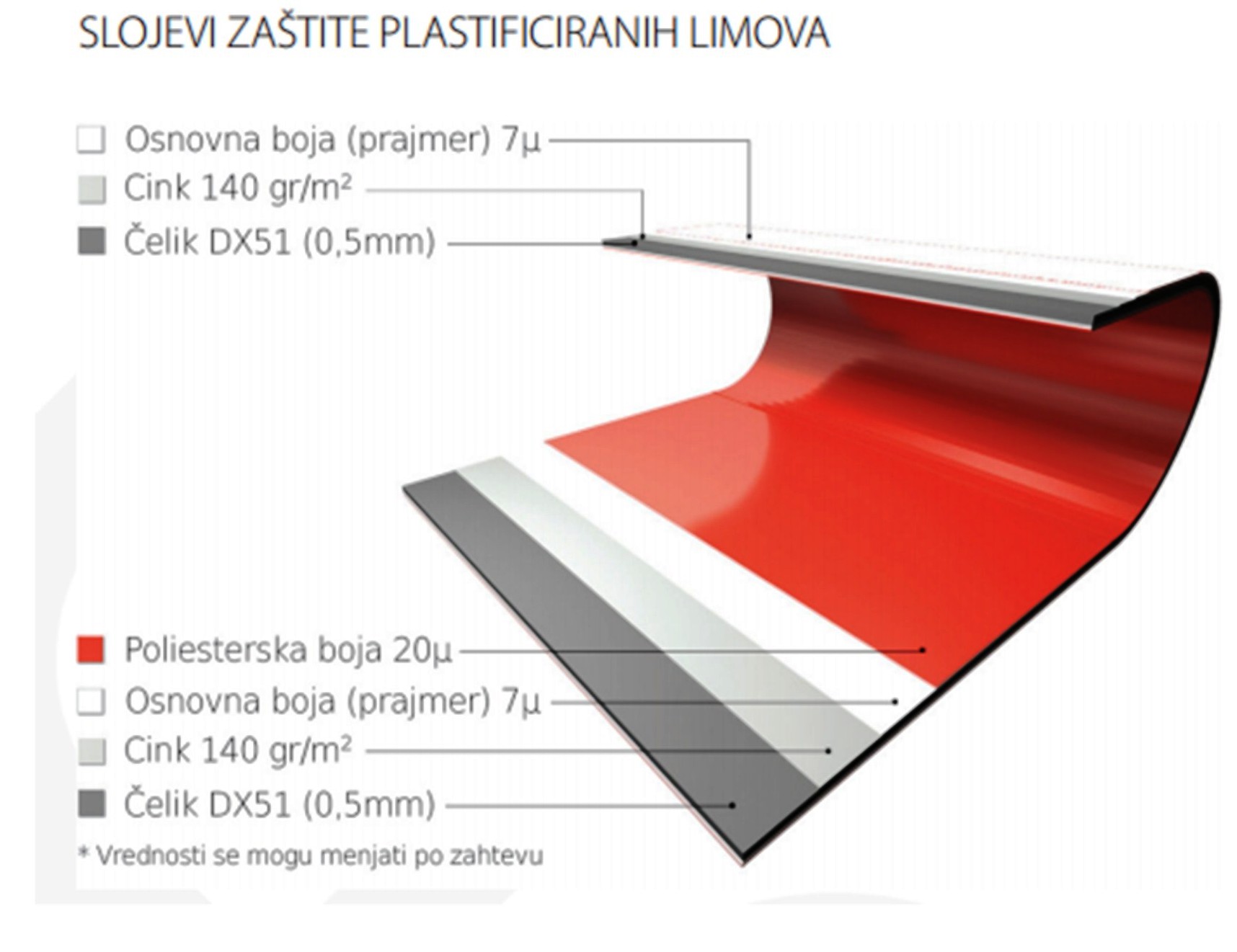

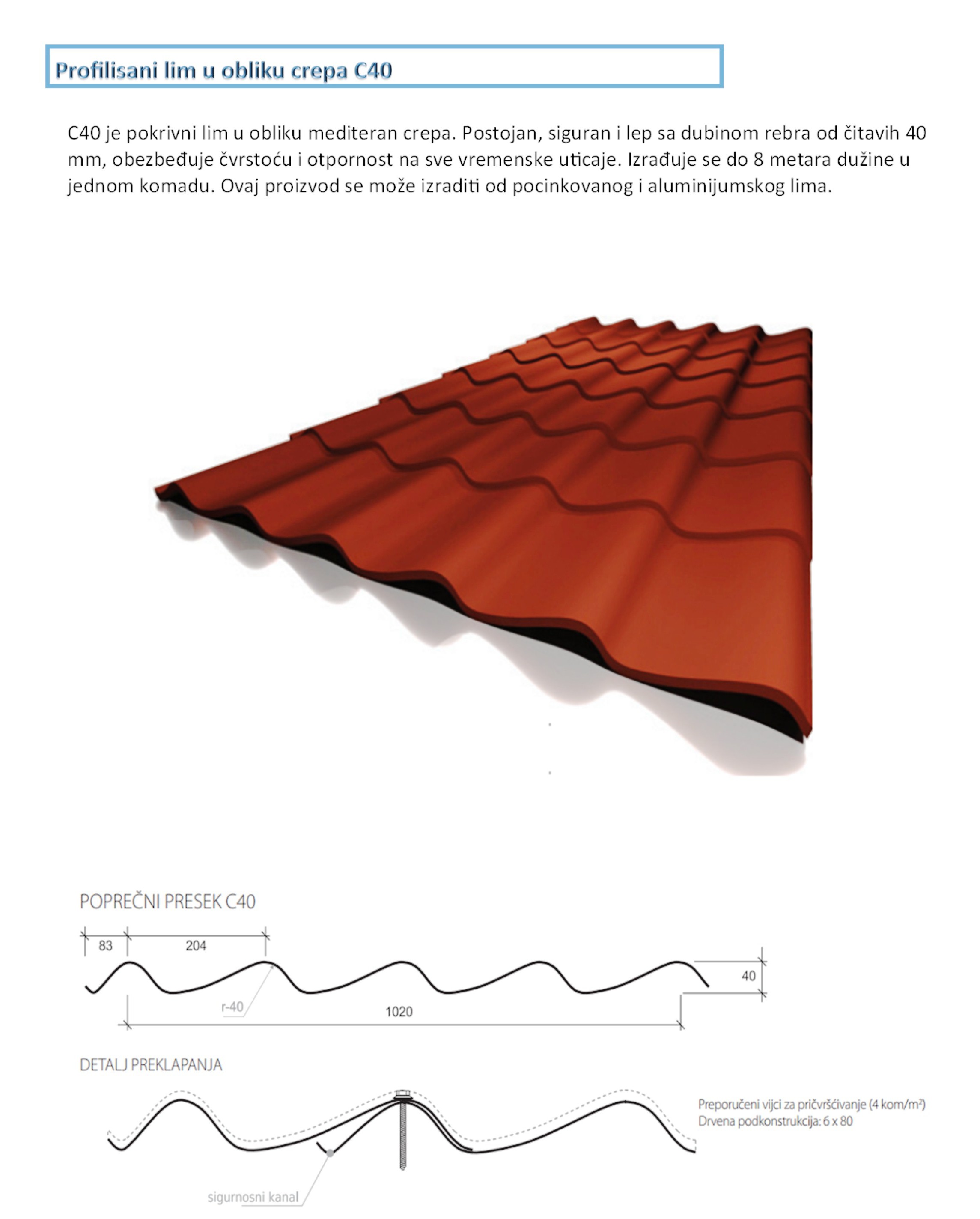

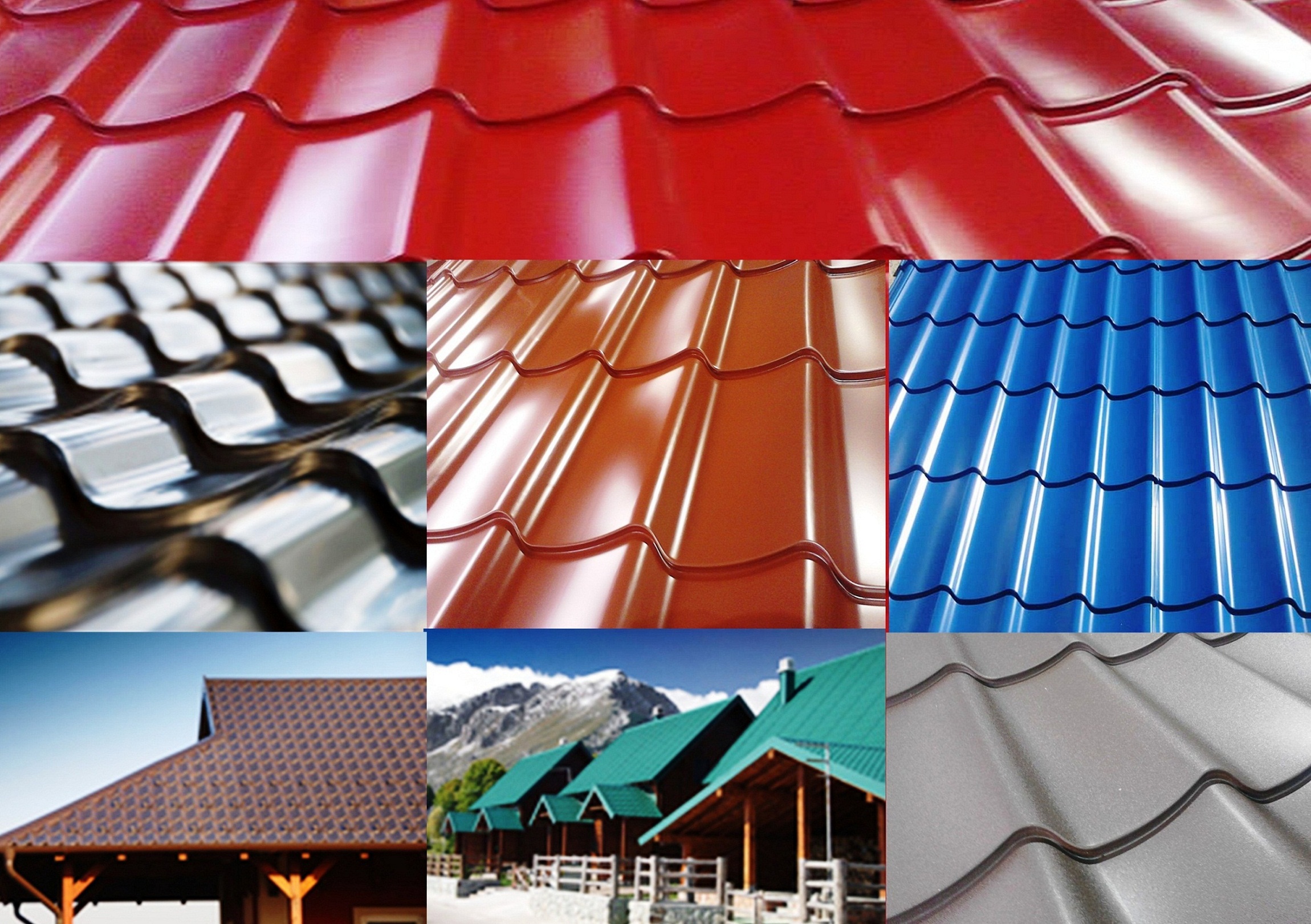

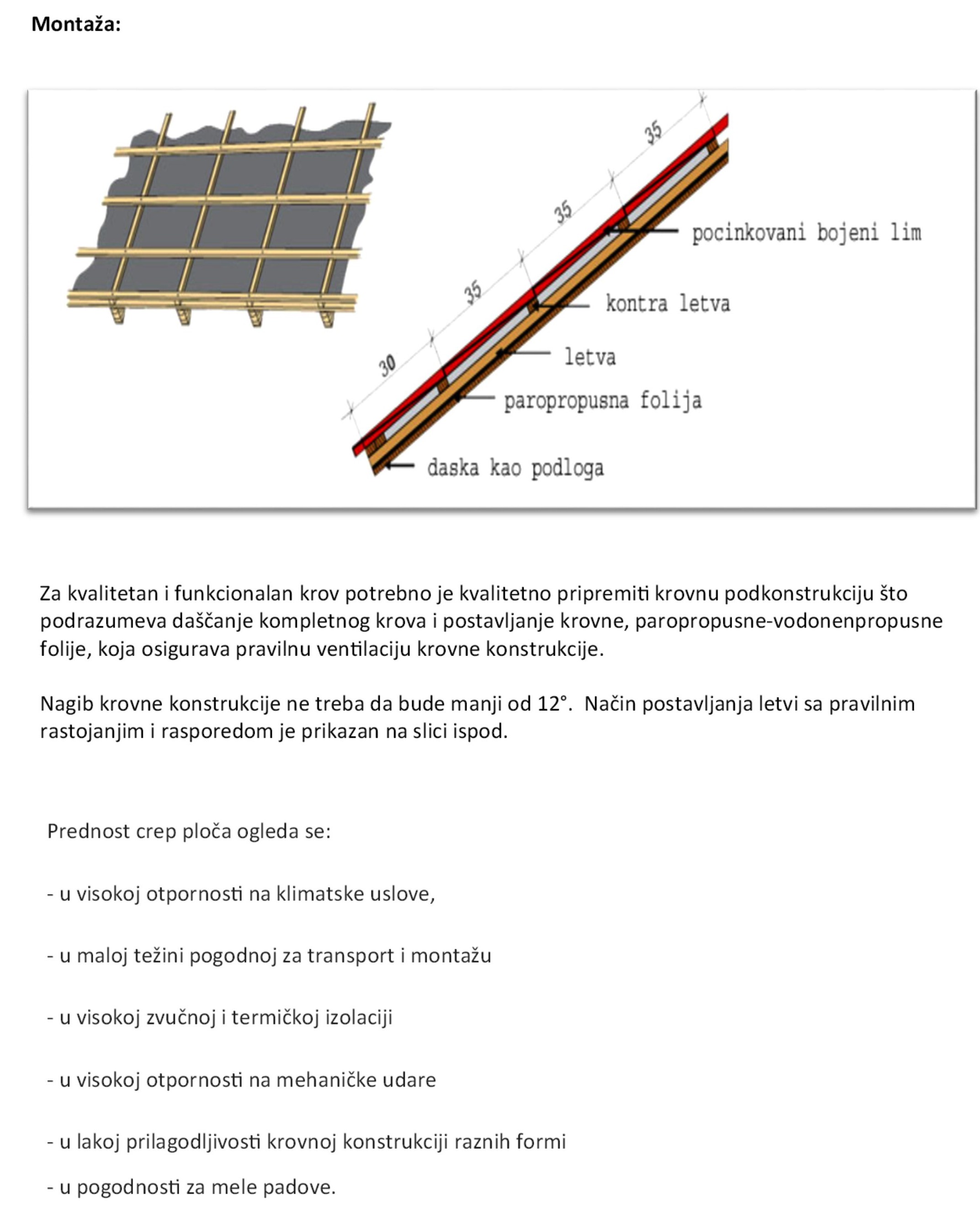

The profiled sheet in the shape of a roof tile is a product of the highest quality aluminum, galvanized or plasticized sheet. It is intended to cover all types of buildings, from small prefabricated houses, through individual residential houses, to large residential buildings and commercial buildings, and especially for upgrading buildings, where there is practically no other option. Roof sheets are produced in plates whose length is determined according to the customer's order. The cover can be mounted on all types of buildings and it is not necessary to remove the existing cover and construction. Sheets can be mounted in two versions: insulated and non-insulated. The basic material for production is the same as for trapezoidal profiled sheets, with the exception of using a permeable-waterproof film.

 slikacrep

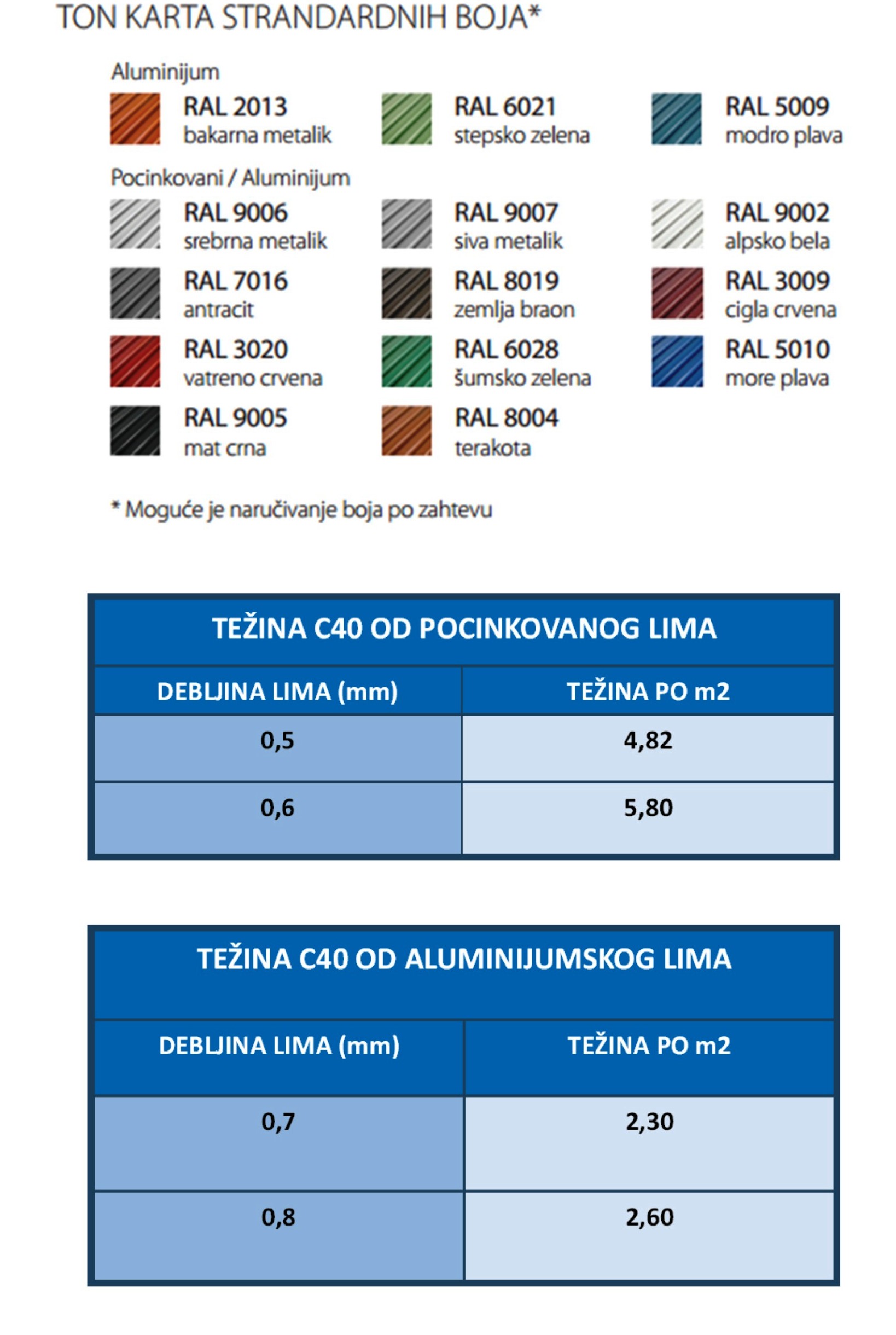

crep30str1crepstr2crepcstr1crepcstr2crepcstr3

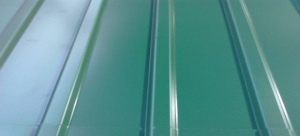

Aluminum trapezoidal facade covering sheet is most often used for facade and ceiling cladding of buildings, and it can also be used for roofing of smaller buildings, canopies, etc.



trapez tr10tr10st2

tr18str1tr18str2tr35st1

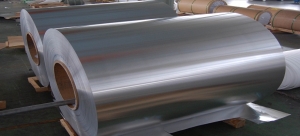

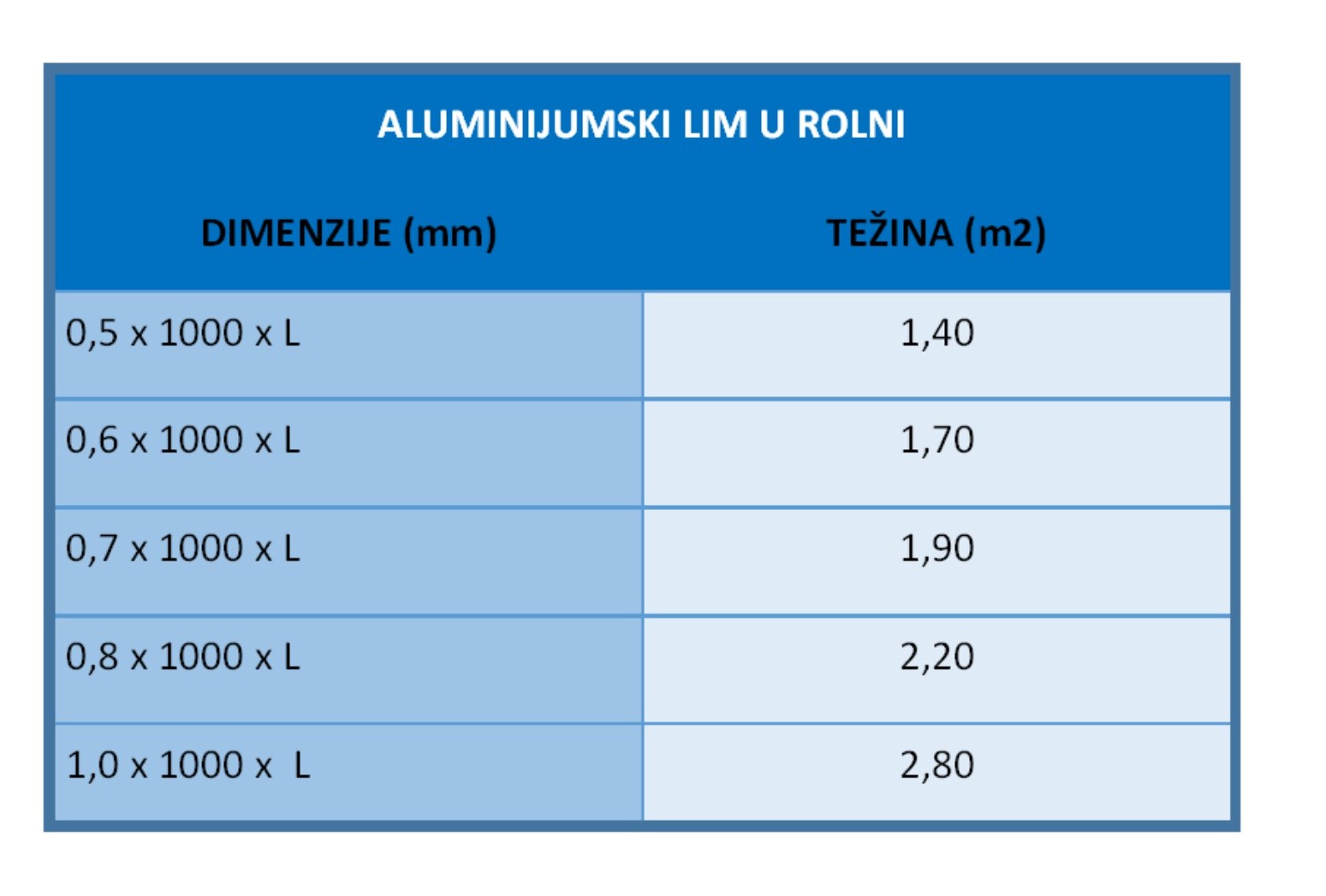

In our sales program you can find aluminum sheet in a roll in many different dimensions and a wide range of colors.



You can see more pictures of aluminum sheets in the gallery

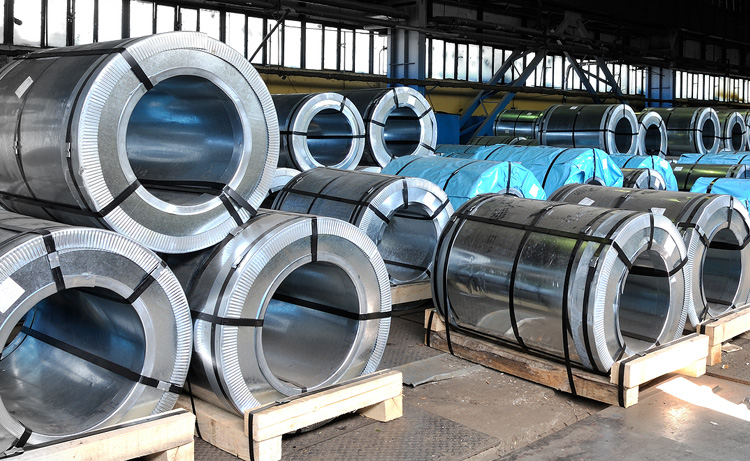

img cold rolled coilsslide-1lirolnatezina

Objavljeno u Aluminijumski limovi

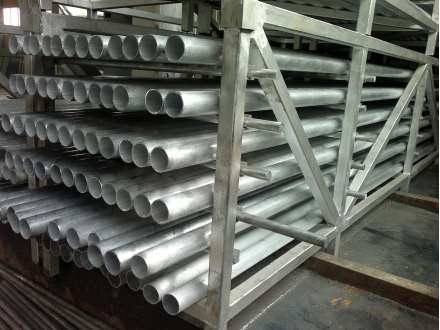

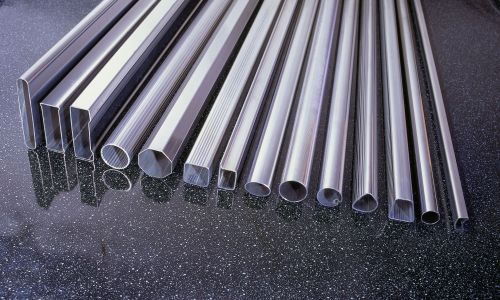

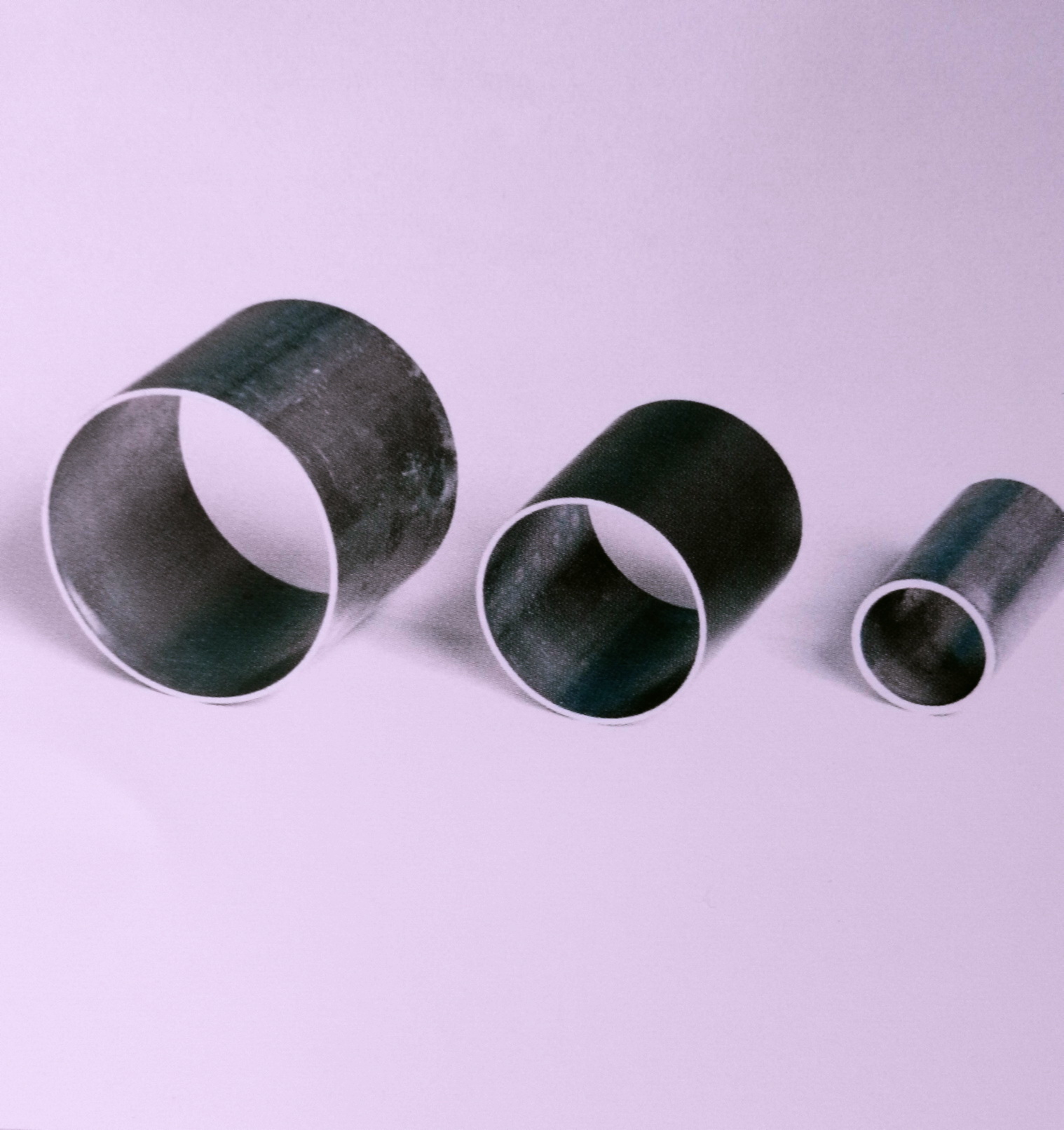

With us, you can find square, rectangular and round aluminum pipes of various dimensions. You can see more pictures of aluminum products in the gallery





Aluminijumska Cev Precnik 50 46 Slika L 2458805

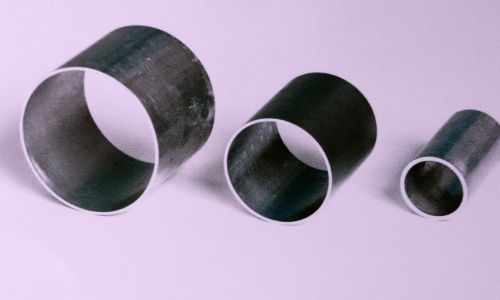

Aluminijum1
Aluminijumska Kvadratna Cev
Aluminijumska Sipka Kvadratna

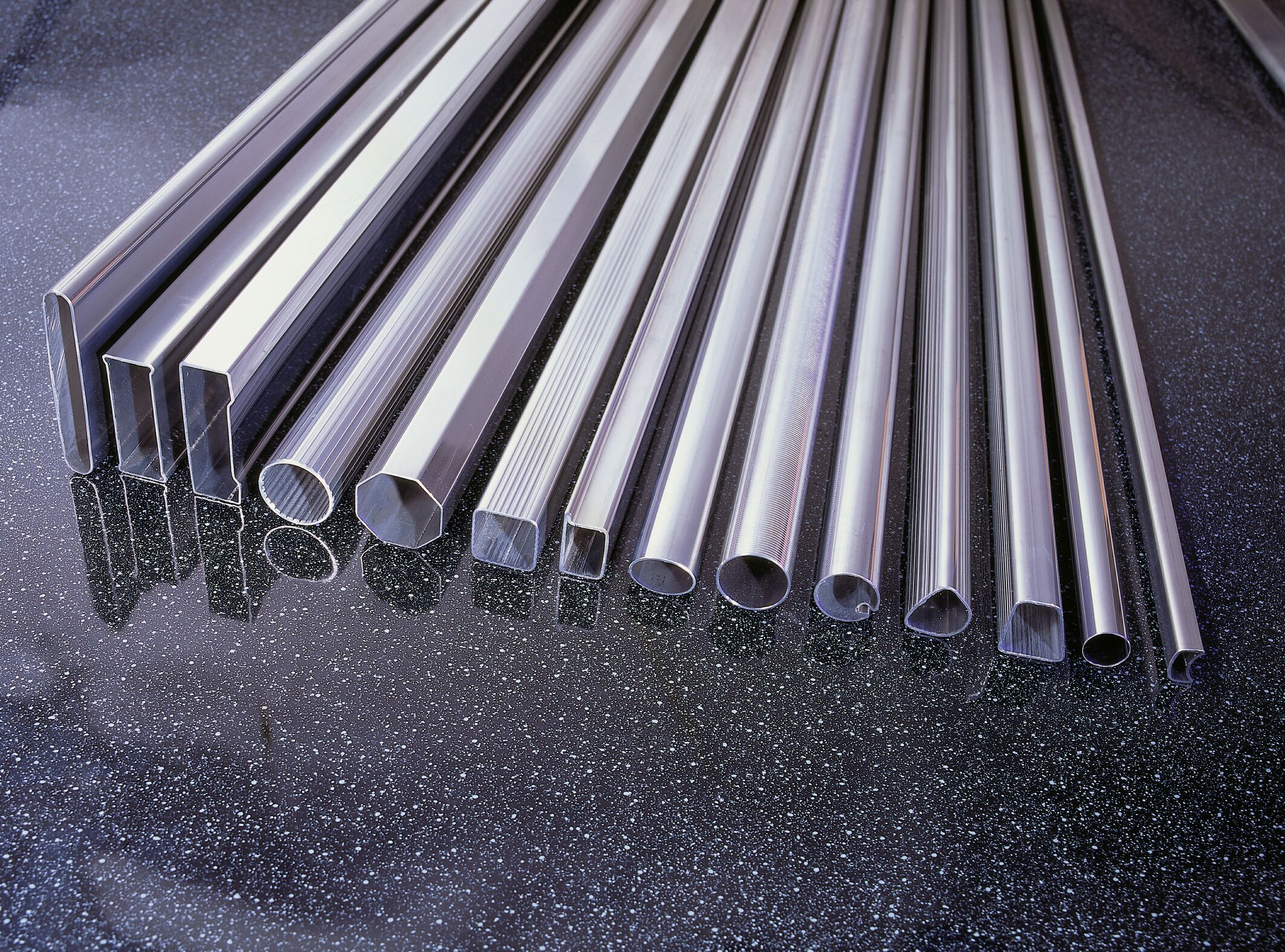

Aluminijumske Cevi 3

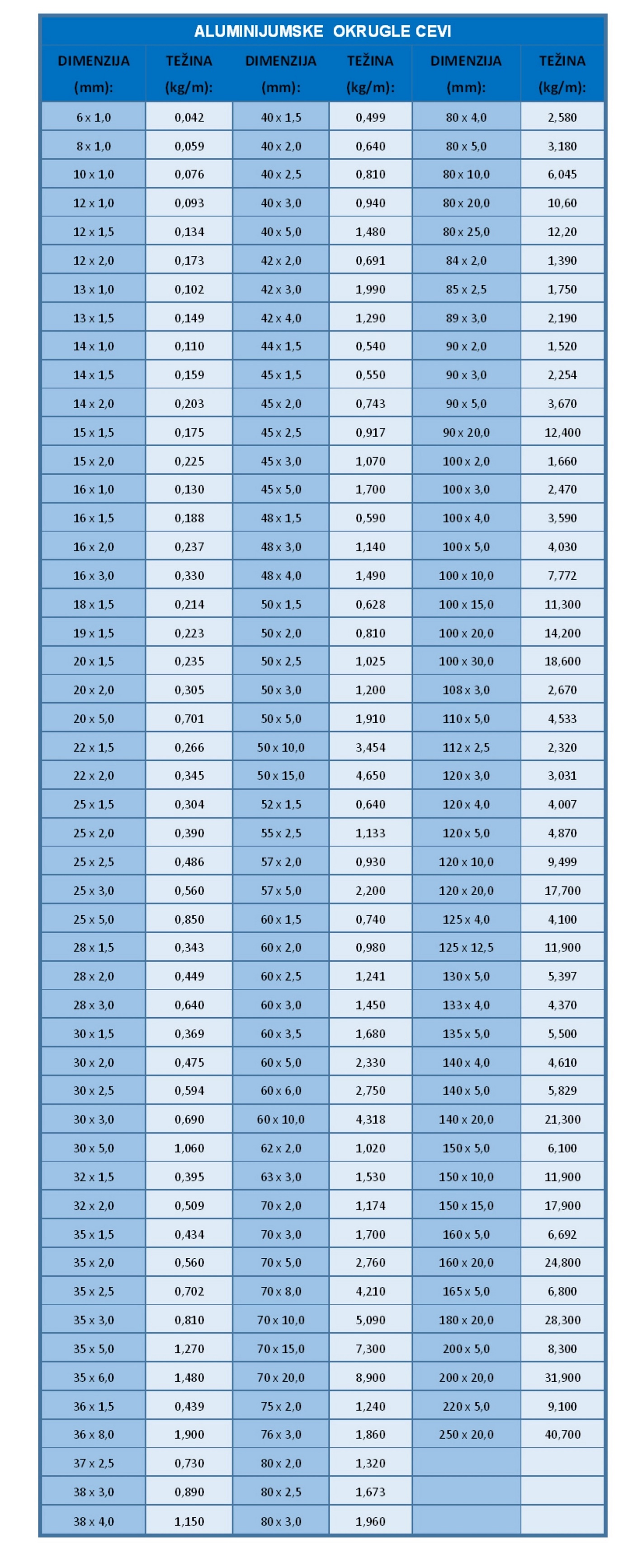

aluminijumska cev tabela

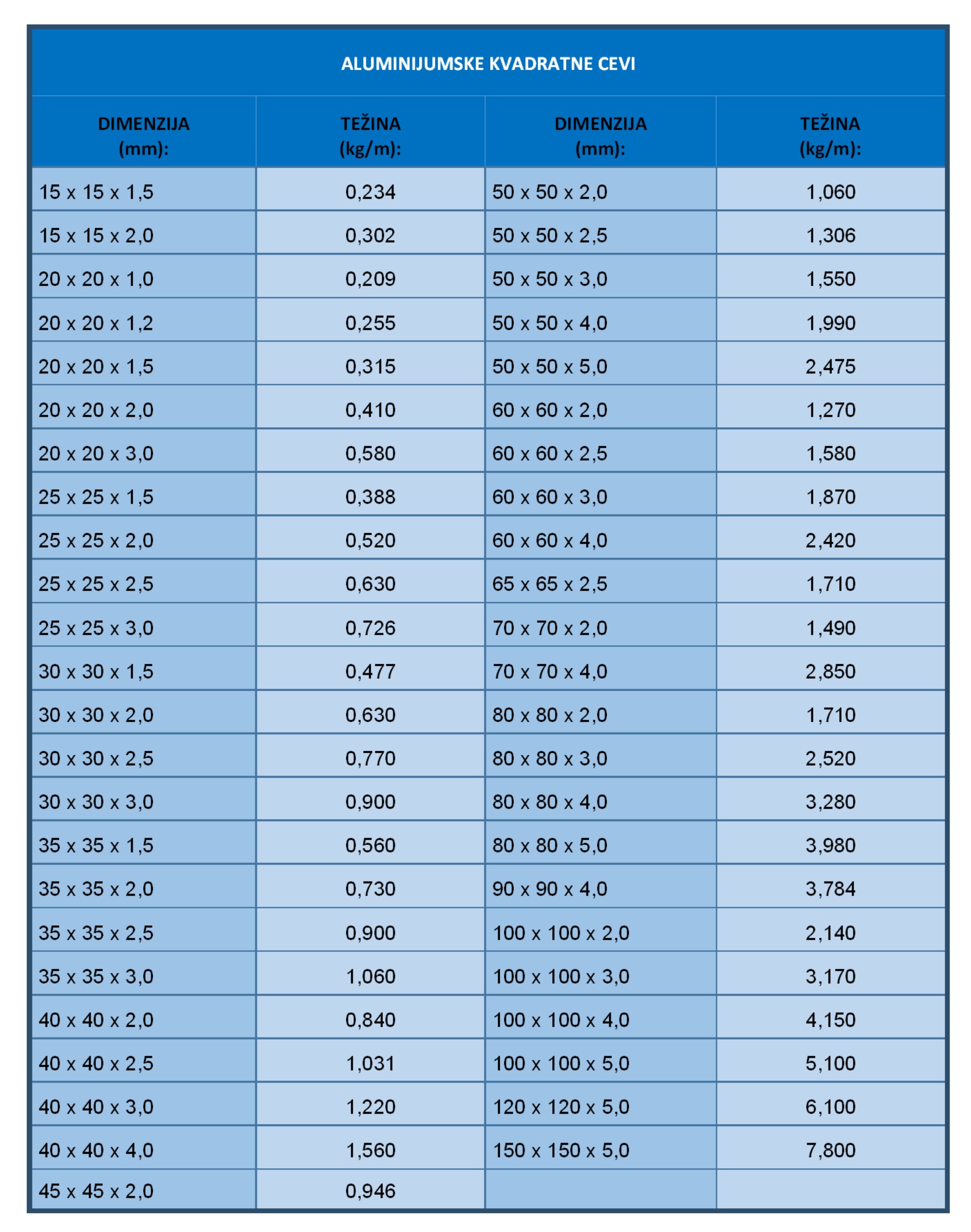

aluminijumske kvadratne cevi

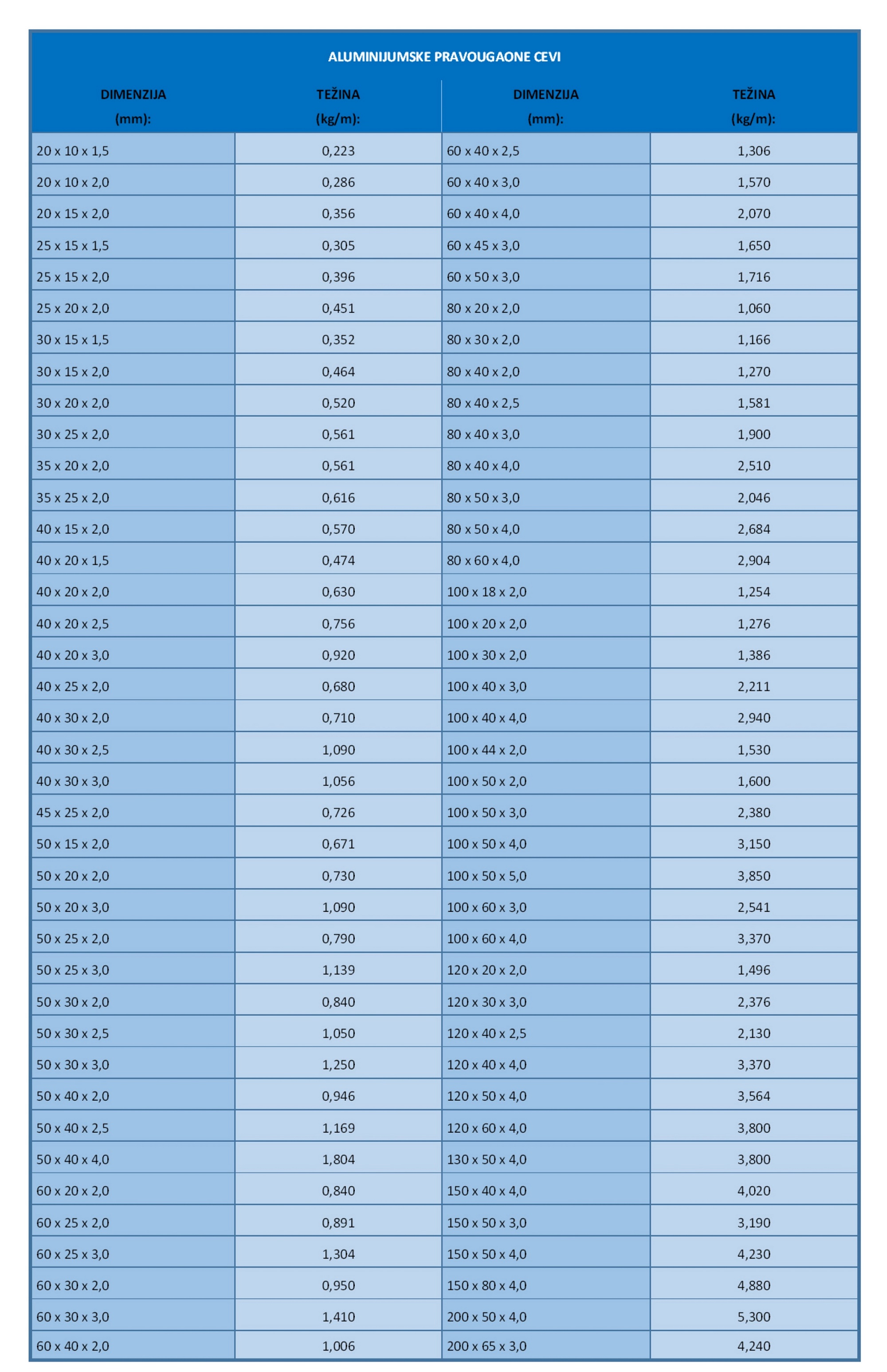

aluminijumske pravougaone šipke







































































































































Objavljeno u Aluminum

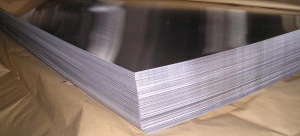

Our sales program includes a wide range of aluminum sheets, both in terms of dimensions and colors.
You can see more pictures of aluminum sheets in the gallery

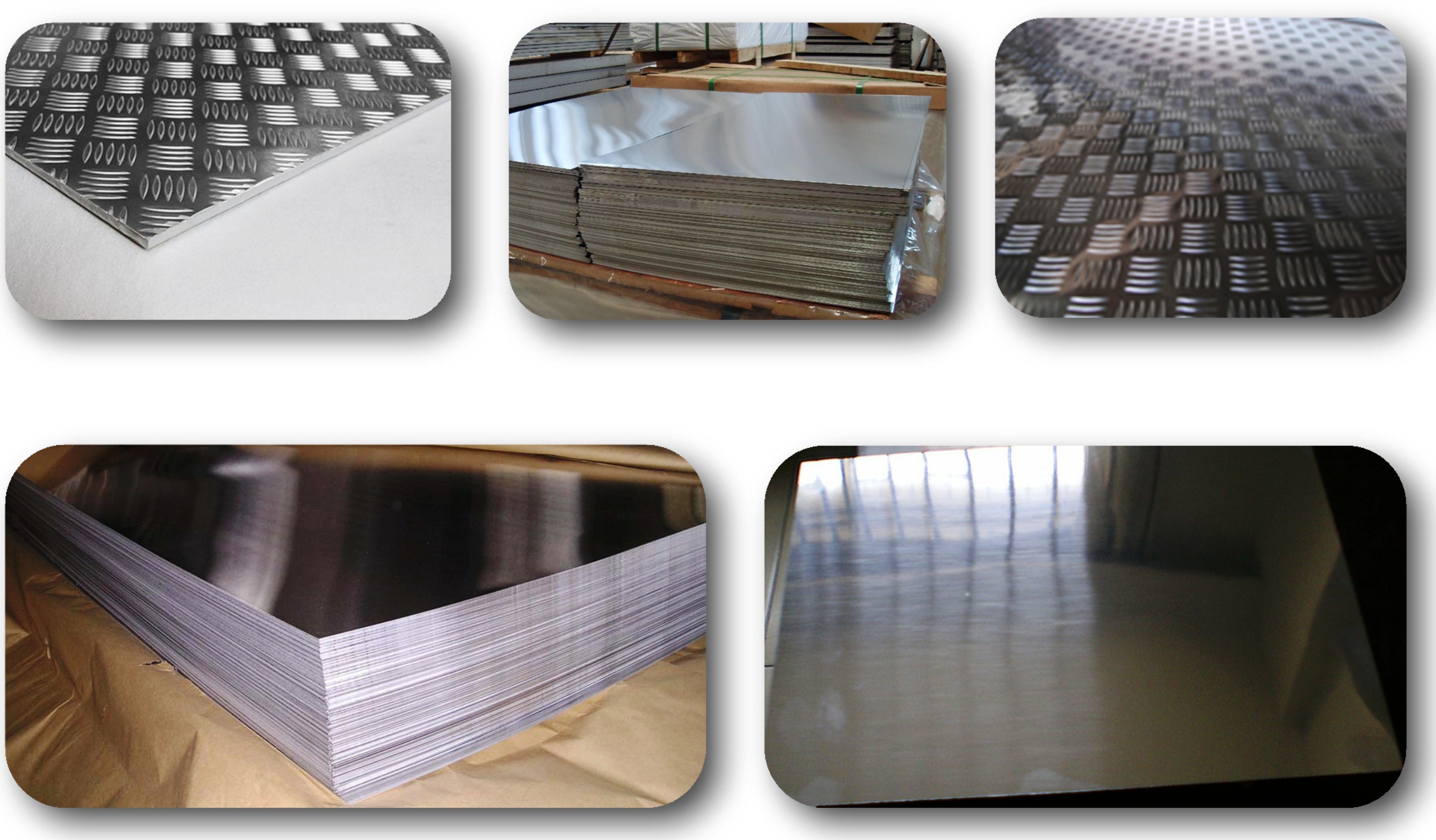

allimtabla stranica01limtezina1

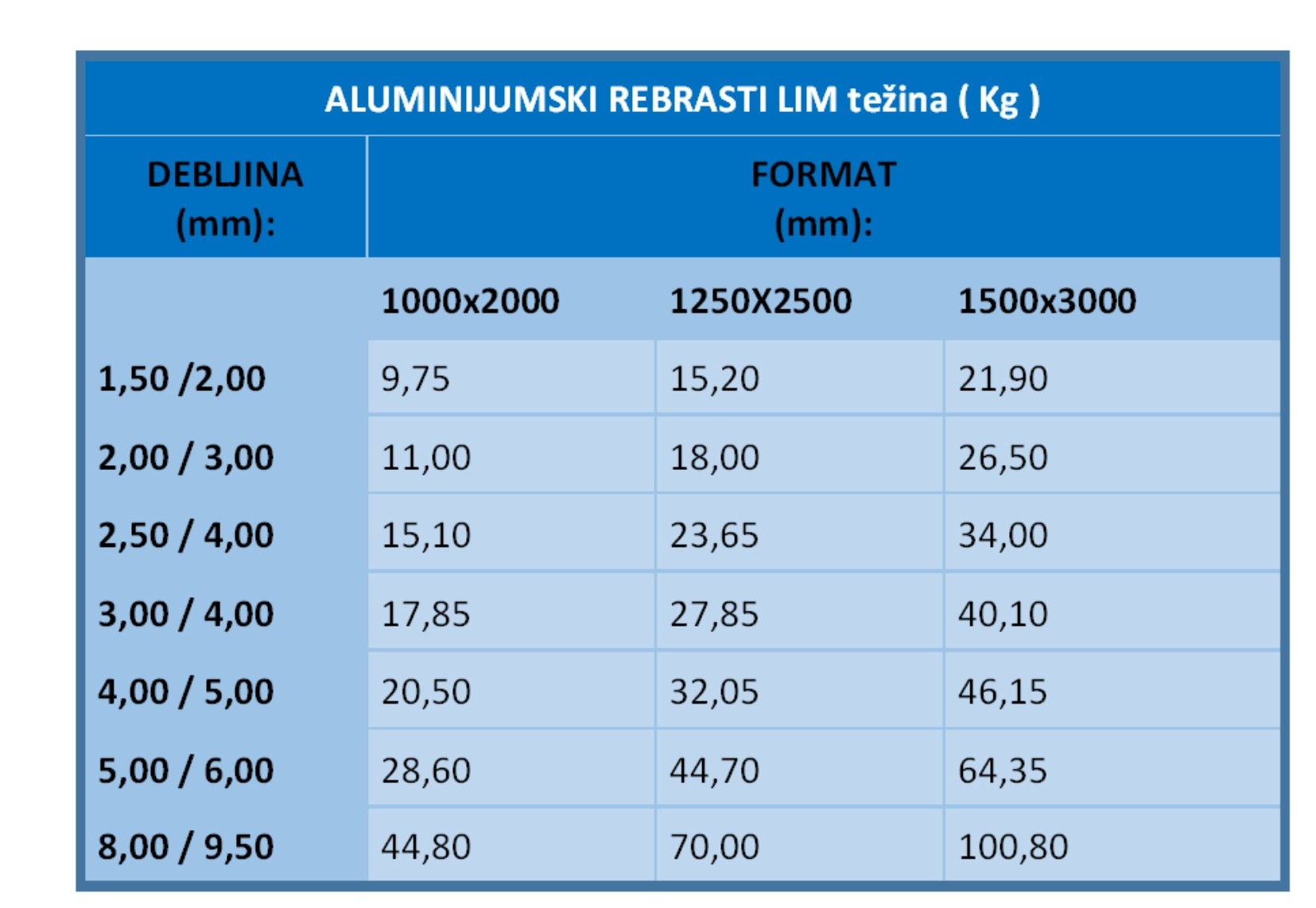

rebrastilim























Objavljeno u Aluminijumski limovi

Aluminum trapezoidal roofing sheet is most often used for covering and lining sports and production halls, business and residential buildings, it is also widely used in long construction buildings.

 Aluminum trapezoidal sheet

TR40



TR40 Atr50tr60str01tr60str2tr85str01tr95str1tr100str1stranica01150trapez150



In our sales program, we have a wide range of aluminum rods of various dimensions.
- Round aluminum rods
- Square aluminum bars
- Hexagonal aluminum rods
You can see more pictures of aluminum products in the gallery and more information about aluminum on our blog.

ALUMINIJUMSKA ŠIPKA FI





 WEIGHTS FOR 1 METER OF ALUMINUM BARS



Dimenzija OKRUGLA ČETVRTASTA ŠESTOUGAONA
5 0.055
6 0.079
7 0.107
8 0.140 0.179 0.155
9 0.178 0.226 0.196
10 0.219 0.280 0.242
11 0.266 0.338 0.293
12 0.316 0.403 0.349
13 0.371 0.473 0.409
14 0.431 0.548 0.475
15 0.494 0.630 0.545
16 0.562 0.716 0.620
17 0.635 0.809 0.700
18 0.712 0.907 0.785
19 0.793 1.011 0.875
20 0.879 1.120 0.969
21 0.969 1.234 1.069
22 1.064 1.355 1.173
23 1.163 1.481 1.282
24 1.266 1.613 1.396
25 1.374 1.750 1.515
26 1.486 1.893 1.679
27 1.603 2.041 1.767
28 1.724 2.195 1.901
29 1.849 2.355 2.039
30 1.979 2.520 2.182
31 2.113 2.690 2.330
32 2.251 2.867 2.483
33 2.394 3.049 2.640
34 2.542 3.236 2.803
35 2.693 3.430 2.970
36 2.850 3.628 3.142
37 3.010 3.833 3.319
38 3.175  4.043  3.501
39 3.344 4.258 3.688
40 3.518 4.480 3.879
41 3.696 4.706 4.076
42 3.879 4.939 4.277
43 4.066 5.177 4.483
44 4.257 5.420 4.694
45 4.552 5.670 4.910
46 4.653 5.924 5.131
47 4.857 6.185 5.356
48 5.066 5.586 6.451
49 5.280 6.722 5.822
50 5.497 7.000 6.062
51 5.719 7.282 6.307
52 5.946 7.571 6.556
53 6.177 7.865 6.811
54 6.412 8.165 7.071
55 6.652 8.470 7.335
56 6.896 8.780 7.604
57 7.144 9.097 7.878
58 7.397 9.419 8.157
59 7.655 9.764 8.441
60 7.916 10.080 8.729
61 8.183 10.418 9.023
62 8.453 10.763 9.321
63 8.728 11.113 9.624
64 9.007 11.468 9.932
65 9.291 11.830 10.245
66 9.579 12.196 10.562
67 9.872 12.569 10.885
68 10.169 12.497 11.212
69 10.470 13.330 11.544
70 10.775 13.720 11.881
71 11.096 14.115 12.223
72 11.400 14.515 12.570
73 11.719 14.921 12.922
74 12.042 15.332 13.278
75 12.370 15.750 13.639
76 12.702 16.173 14.006
77 13.038 16.601 14.377
78 13.379 17.035 14.753
79 13.724 17.475 15.133
80 14.074 17.920 15.519
81 14.428 18.370 15.909
82 14.786 18.827 16.305
83 15.149 19.290 16.705
84 15.517 19.756 17.109
85 15.888 20.230 17.519
86 16.264 20.708 17.934
87 16.645 21.193 18.353

88 17.030 21.683 18.778
89 17.419 22.178 19.207
90 17.813 22.680 19.641
91 18.210 23.186 20.080
92 18.613 23.649 20.524
93 19.020 24.217 20.972
94 19.413 24.740 21.426
95 19.837 25.270 21.884
96 20.267 25.805 22.347
97 20.691 26.345 22.815
98 21.120 26.891 23.288
99 21.553 27.442 23.766
100 21.991 28.000 24.248
105 24.245 30.870
110 26.609 33.880
115 29.083 37.030
120 31.667 40.320
125 34.344 43.750
130 37.165 47.320
135 40.078 51.000
140 43.102 54.880
145 46.236 58.870
150 49.480 63.000
155 52.833 67.270
160 56.297 71.680
165 59.870 76.230
170 63.554 80.920
175 67.347
180 71.251
190 79.347
200 87.920
210 96.980
220 106.430
230 116.330
240 126.660
250 137.440





ALUMINIJUM KVADRATNA ŠIPKA

ALUMINIJUM KVADRATNA ŠIPKA

Šestougaone šipke

Šestougaone šipke

Aluminijum Kvadrat šIpka

Aluminijum Kvadrat šIpka

Aluminijumska šIpka šestougaona

Aluminijumska šIpka šestougaona





Objavljeno u Aluminum
Aluminum is a metal without which it is difficult to imagine everyday life. Due to its versatility and variety of uses, it is the most widespread metal after iron. The versatility of aluminum is reflected in a unique combination of properties, the most important of which are lightness, strength, durability and corrosion resistance, along with good thermal and electrical conductivity. The most important ore of aluminum is bauxite, from which it is mainly obtained. Aluminum has no effect on human health, although an allergy can rarely occur.
Aluminum is a silvery-white metal, it is the third most abundant of all the elements that occur on the Earth's surface (7.28% of all elements). It was isolated and discovered in 1827 by Friedrich Weller. Pure, crystalline aluminum is brittle and brittle. Aluminum can be strengthened by adding appropriate alloying elements (Cu, Mg, Mn, Si, etc.) to improve its mechanical or chemical properties. Due to its properties, such as low density and high resistance to corrosion, alloys of aluminum with copper and molybdenum, called duralumin, have found many applications and are used for the production of a wide group of products - from cans to parts for spaceships.



Aluminum oxidizes slowly in the air. It is covered with a layer of oxide Al2O3 (aluminum oxide), which protects the metal below the surface from corrosion. We can protect and decorate aluminum in various ways. Painting, anodizing, brushing, etc. are a common finish. It is easily processed by hand and by machine, and with the appropriate equipment it can also be welded.
Why do we use aluminum?
- Light metal
- Corrosion resistant
- Good conductor of electricity
- It's not magnetic
- Good reflector of heat and light
- It's not flammable
- No sparks
- Good welding ability
- He's not poisoned
- Does not affect the smell and taste of food
- It is not brittle at low temperatures
- The possibility of shaping according to all known methods
- Pleasant aesthetic appearance
- Simple and cheap maintenance
- Durability
- Quick and easy assembly
- Wide range of products
- Wide field of application



PHYSICAL-CHEMICAL PROPERTIES:
Name, symbol...................................Aluminium, Al, 13
Prevalence:...................7.28% of all elements
Position in the periodic table:.....III A group
Discovered:...................................1827. (Friedrich Weller)
Color:......................................silvery white
Atomic number:............................13
Density:...................................2700 kg/m3
Atomic mass:........................26,981 U
Atomic radius:...................125 pm
Crystal structure:...................surface centered
Melting point:.............933.47K / 660.32°C
Boiling temperature:.............2792K / 2519°C
Molar volume:...................10 x 10 - 3 m?/mol
Heat of vaporization:...................293.4 KJ/mol
Heat of fusion:...................10.79 KJ/mol
Speed of sound:............................5100 m/s (933K)
Electro negativity:...................1.61
Specific heat:...................900 J/kg K
Specific conductivity:............37.7 x 106 S/U
Thermal conductivity:..............237 W/mK
Oxidation number:...................+3
In air: it gets covered with Al2O3 oxide layer
In boiling water: converts to aluminum hydroxide
In strong bases: it dissolves easily
In sodium and dilute sulfuric acid: it dissolves and displaces hydrogen
In concentrated sulfuric acid: sulfur is released
In dilute nitric acid: ammonia is released
In concentrated nitric acid: it is passivated

Aluminum sheet has a variety of applications in many branches of industry, especially in metal processing, construction, auto industry, aero industry, packaging industry, shipbuilding and others. Aluminum sheets are used for making machine parts, covering roofs and making facades, bodies and parts for cars, wings and fuselages, production of beverage cans, etc. Due to its decorative appearance, light weight and durability, resistance to corrosion and weathering, aluminum sheet is the material of choice for designers, engineers and architects, and we can see it every day in our homes and public buildings. At sub-zero temperatures, aluminum sheet is stronger than at room temperature and retains its elasticity. Aluminum sheets are an excellent choice for covering buildings and covering the roof and represent the best ratio of weight - durability - price. METALIonline offers a large selection of aluminum sheet, aluminum plates, aluminum sheet in roll, trapezoidal sheet. See the complete selection of aluminum products on the page - Aluminum.



UPOREDNI PREGLED OZNAKA LEGURA ALUMINIJUMA PO SVETSKIM STANDARDIMA
Aluminijum i aluminijumske legure
Internacionalni Kanada Francuska Nemačka Engleska Italija Japan
AA(USA) ISO R209 Alcan NF A02-004 DIN 1700 DIN 17007 BS, BS-L, DTD UNI JIS
1050A Al99,5 1S A-5 Al99,5 3.0255 1B P-AlP99,5 .
1070A Al99,7 99.70 A-7 Al99,7 3.0275 . P-AlP99,7 .
1080A Al99,8 99.80 A-8 Al99,8 2.0285 1A P-Al99,8 .
(1199) . 99.99 A-99 Al99,98 R 3.0385 1 . .
1200 Al99 2S A-4 Al99 3.0205 1C P-AlP99,0 .
2007 . . A-U4Pb AlCuMgPb 3.1645 . . .
2011 Al-Cu6BiPb 28S A-U5PbBi AlCuBiPb 3.1655 FC1 P-AlCu5,5PbBi .
2014 Al-Cu4SiMg . A-U4SG AlCuSiMn 3.1255 H15 P-AlCu4,4SiMnMg .
2017A Al-Cu4Mg 17S A-U4G AlCuMg1 3.1325 H14 P-AlCu4MgMn A2017
2024 Al-Cu4Mg1 24S A-U4G1 AlCuMg2 3.1355 2L97/98 P-AlCu4,5MgMn .
2117 Al-Cu2Mg 16S A-U2G AlCu2,5Mg0,5 3.1305 2L69 P-AlCu2,5MgSi .
3003 Al-Mn1Cu D3S A-M1 AlMnCu 3.0517 . P-AlMn1,2Cu .
3004 . 4S; D4S A-M1G AlMn1Mg1 3.0526 . P-AlMn1,2Mg .
3005 . . A-MG0,5 AlMn1Mg0,5 3.0525 . . .
3103 Al-Mn1 3S . AlMn1 3.0515 N3 P-AlMn1,2 .
3105 . 4S; D4S . AlMn0,5Mg0,5 3.0505 N31 . .
5005A Al-Mg1 B57S A-G0,6 AlMg1 3.3315 N41 P-AlMg0,9 .
5049 . B4S A-G2,5MC AlMg2Mn0,8 3.3527 . . .
5050B Al-Mg1,5 A57S A-G1,5 AlMg1,5 3.3316 . P-AlMg1,5 .
5052 Al-Mg2,5 57S (5052) AlMg2,5 3.3523 . P-AlMg2,5 A5052
5056A Al-Mg5 56S;A56S . AlMg5 3.3355 N6 P-AlMg5 A5056
5082 Al-Mg4 . . AlMg4,5 3.3345 . P-AlMg4,4 .
5083 Al-Mg4,5Mn D54S A-G4,5MC AlMg4,5Mn 3.3547 N8 P-AlMg4,5 .
5086 . B54S A-G4MC AlMg4Mn 3.3545 (N5/6) P-AlMg4,4 .
5251 Al-Mg2 M57S A-G2M AlMg2Mn0,3 3.3525 N4 P-AlMg2Mn .
5454 Al-Mg3Mn B53S A-G3MC AlMg2,7Mn 3.3537 N51 P-AlMg2,7Mn .
5754 Al-Mg3 53S A-G3M AlMg3 3.3535 . (P-AlMg3,5) .
6005A (Al-SiMg) (51S) A-SG0,5 AlMgSi0,7 3.3210 (H10) . .
6012 . . A-SGPb AlMgSiPb 3.0615 . P-AlSiMgMn .
6060 Al-MgSi 50S A-GS AlMgSi0,5 3.3206 H9 P-AlMgSi .
6061 Al-Mg1SiCu 65S;CS5S (6061) AlMg1SiCu 3.3211 H20 P-AlMg1SiCu .
6082 Al-Si1Mg B51S A-SGM0,7 AlMgSi1 3.2315 H30 P-AlMgSi .
7020 Al-Zn4,5Mg1 D74S A-Z5G AlZn4,5Mg1 3.4335 . P-AlZn4,5Mg .
7022 . 79S A-Z4GU AlZnMgCu0,5 3.4345 . . .
7075 Al-Zn6MgCu 75S A-Z5GU AlZnMgCu1,5 3.4365 2L95/96 P-AlZn5,8MgCu A7075
